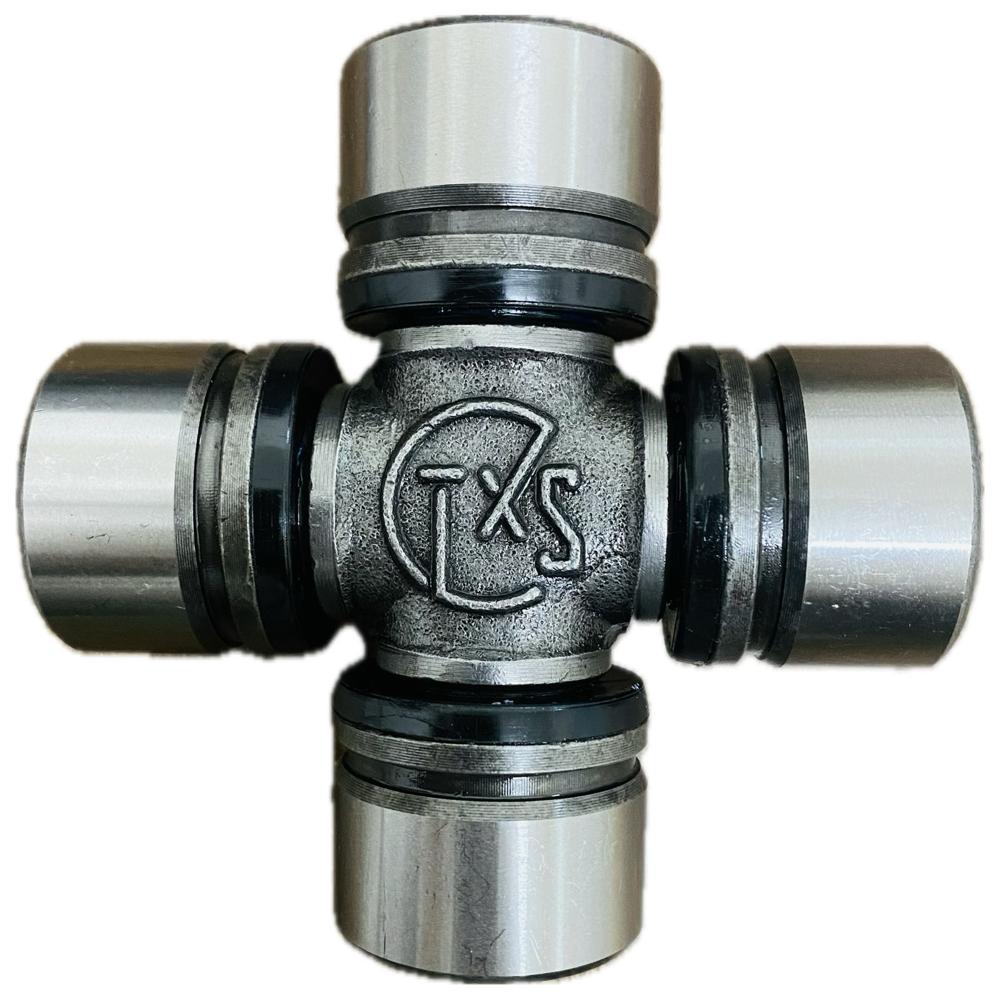

AUniversal Joint Cross(also known as aU-joint cross) is a crucial component in the driveline of various types of machinery, including automobiles, agricultural equipment, and industrial machinery. It serves as the central part of auniversal joint (U-joint), which is designed to transmit rotary motion and power between shafts that are not in perfect alignment with each other.

Description of a Universal Joint Cross:

1. Shape and Structure:

   • The U-joint cross is typically across-shapedmetal component with four arms extending out from a central hub. Each arm has a bearing at the end where the U-joint connects to the drive shafts or yokes.

   • The shape of the U-joint cross allows it to pivot at different angles, transmitting power through shafts that are misaligned (i.e., when the shafts are at an angle to one another).

2. Material:

   • The cross is usually made ofhigh-strength steel,forged steel, oralloy steelfor durability and strength, as it needs to withstand high torque and stresses.

   • It may also undergoheat treatmentto improve its hardness, toughness, and fatigue resistance.

3. Function:

   • The primary purpose of the U-joint cross is totransfer rotational motionandtorquefrom one shaft to another while allowing for flexibility in the shaft alignment. This flexibility is crucial in applications where the shafts are not aligned perfectly in a straight line, such as in a cars driveshaft or a tractors PTO shaft.

   • The U-joint cross enables the two shafts to rotate at different angles while keeping the rotational force flowing smoothly between them.

4. Lubrication:

   • To ensure smooth operation and longevity, U-joint crosses often includegrease fittings (zerk fittings). These allow regular lubrication to reduce friction and wear within the joints.

   • Regular greasing is essential to keep the bearings and moving parts well-lubricated, which helps prevent overheating and premature wear.

5. Applications:

   • Automobiles: In vehicles, the U-joint cross connects the driveshaft to the axle, allowing the driveshaft to transmit torque from the engine to the wheels, even as the axle moves up and down.

   • Agricultural Equipment: In machinery like tractors, the U-joint cross transmits power from the tractors PTO shaft to implements like plows, harvesters, and seeders.

   • Industrial Equipment: Used in conveyor belts, cranes, and other heavy machinery, where there is a need for flexible shaft connections.

6. Durability:

   • U-joint crosses are designed to handle a range of stresses, including heavy loads, high speeds, and exposure to harsh conditions such as moisture, dust, and extreme temperatures.

   • Many U-joint crosses are treated or coated with anti-corrosion materials to extend their lifespan, especially in agricultural and industrial environments.

7. Types and Variants:

   • There are several different types of U-joint crosses depending on their application, including:

     • Standard U-joint Cross: Used for light to medium-duty applications.

     • Heavy-Duty U-joint Cross: Designed for high-torque, high-load situations, often used in trucks, construction equipment, and agricultural machinery.

     • Greaseable U-joint Cross: Features grease fittings for regular lubrication, increasing the component's lifespan.

How It Works:

The U-joint cross works by allowing two shafts to transfer torque even when they are not perfectly aligned. As the shafts rotate, the U-joint cross pivots within its bearing points, allowing the shafts to operate at various angles. This flexibility prevents damage to the shafts and other components while ensuring continuous power transmission.

Key Points:

• Material: Typically high-strength, forged steel.

• Shape: Cross-shaped with four arms.

• Purpose: Transfers rotational motion between misaligned shafts.

• Lubrication: Includes grease fittings to ensure smooth operation.

• Applications: Found in automotive drivetrains, agricultural machinery, and industrial machines.

The U-joint cross is essential for power transmission in many mechanical systems, ensuring smooth operation and preventing damage to parts caused by misalignment.
